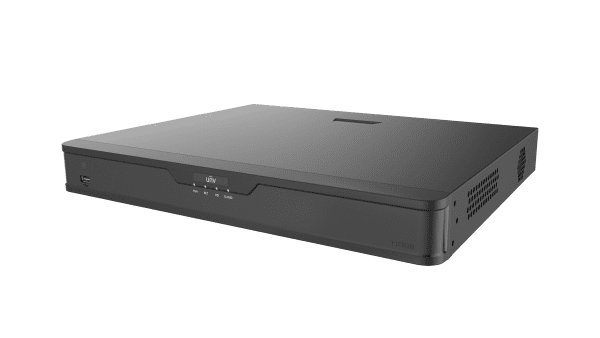

UNV XVR302-16Q3 – 16-Channel 5-in-1 Hybrid Digital Video Recorder (DVR/XVR)

📄 Long Description

Versatile Hybrid Video Recorder for Modern Surveillance

The Uniview XVR302-16Q3 is designed for installers and users who want flexibility and performance in one recorder. Supporting TVI, AHD, CVI, CVBS, and IP camera formats, it allows seamless integration of existing analog cameras with new IP technology.

With 16 BNC channels and support for up to 24 total channels (including IP expansion), this XVR ensures smooth video management, smart motion detection, and remote access via the EZView mobile app.

Whether used for businesses, schools, or residential security, the XVR302-16Q3 offers reliable 24/7 protection with intelligent playback and data security.

✅ Key Features

• Model: UNV XVR302-16Q3

• Video Inputs: 16× BNC analog channels (TVI/AHD/CVI/CVBS)

• IP Channels: Up to 8 additional IP channels (24 total max)

• Video Resolution: Supports up to 5MP Lite recording (analog) and 6MP (IP)

• Compression: H.265/H.264 – high efficiency with reduced storage use

• Recording Modes: Manual, Schedule, Motion Detection, Alarm

• Video Outputs: HDMI & VGA simultaneous outputs

• Audio Input/Output: 1 in / 1 out

• Storage: 2× SATA HDD (up to 10TB each)

• Network: 1× RJ45 (10/100 Mbps) Ethernet port

• USB Ports: 2× USB 2.0

• Mobile App: EZView (iOS & Android) – remote viewing & playback

• Smart Functions: Motion detection, video loss, tampering alerts

• Backup Options: USB drive or network backup

• Power Supply: DC 12V, <10W (without HDD)

• Dimensions: Approx. 320 × 240 × 48 mm

🌟 Why You’ll Love It

• Supports 5 signal formats in one recorder (TVI/AHD/CVI/CVBS/IP)

• Upgrade existing analog systems without replacing cameras

• Remote viewing via smartphone or PC using EZView

• Efficient storage with H.265 compression

• Expandable up to 24 channels with IP integration

• Trusted Uniview quality – stable and installer-friendly
